AI量化实证：使用DNN(深度学习模型)在指数上获得超额收益

传统量化，其实是把自己脑子里的投资逻辑变成规则和策略，用量化的语言表达出来。

传统量化过程：

数据准备
计算策略需要的技术指标
开发策略逻辑
回测

而AI量化，是给定“输入”与输出，然后机器从数据中学习出“规则”，好处是不用人为建模，我们做好特征工程，挖掘因子就好。坏处是“可解释性”可能不好。

AI量化过程:

数据准备
特征工程（也可以是技术指标，但一般数量会很多）
数据划分（训练集、测试集）
建立算法模型
对训练集进行训练，预测；对测试集进行训练，预测
评估模型性能，改进
回测

我们今天使用深度学习模型对指数进行“预测”和量化回测。

01 数据准备

import os
import math
import numpy as np
import pandas as pd
from pylab import plt, mpl
plt.style.use('seaborn')
mpl.rcParams['savefig.dpi'] = 300
mpl.rcParams['font.family'] = 'SimHei'
pd.set_option('mode.chained_assignment', None)
pd.set_option('display.float_format', '{:.4f}'.format)
np.set_printoptions(suppress=True, precision=4)
os.environ['PYTHONHASHSEED'] = '0'

导入指数：

def read_data(symbol):
    data = pd.DataFrame(pd.read_csv('data/{}.csv'.format(symbol)).dropna())
    data['date'] = data['date'].apply(lambda x:str(x))
    data.set_index('date',inplace=True)
    data.sort_index(ascending=True, inplace=True)
    data = data[['close']]
    return data

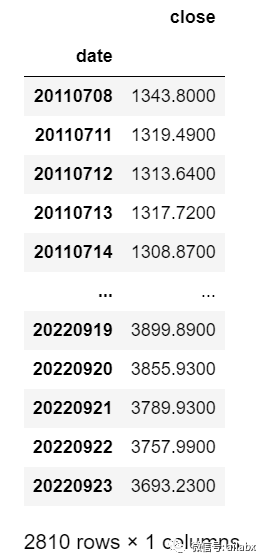

data = read_data('SPX')
data.head()

url = 'http://hilpisch.com/aiif_eikon_eod_data.csv'
symbol = 'EUR='
#data = pd.DataFrame(pd.read_csv(url, index_col=0,
#                               parse_dates=True).dropna()[symbol])
#data.rename(columns={'EUR=':'close'},inplace=True)
data

02 特征工程

添加均线，最小值，最大值，收益动量，收益标准差。

外加5天的滞后周期，

def add_lags(data, symbol, lags, window=20):
    cols = []
    df = data.copy()
    df.dropna(inplace=True)
    df['r'] = np.log(df['close'] / df['close'].shift(1))
    df['r_'] = df['close'].pct_change()
    df['sma'] = df[symbol].rolling(window).mean()
    df['min'] = df[symbol].rolling(window).min()
    df['max'] = df[symbol].rolling(window).max()
    df['mom'] = df['r'].rolling(window).mean()
    df['vol'] = df['r'].rolling(window).std()
    df.dropna(inplace=True)
    df['d'] = np.where(df['r'] > 0, 1, 0)
    features = [symbol, 'r', 'd', 'sma', 'min', 'max', 'mom', 'vol']
    for f in features:
        for lag in range(1, lags + 1):
            col = f'{f}_lag_{lag}'
            df[col] = df[f].shift(lag)
            cols.append(col)
    df.dropna(inplace=True)
    return df, cols

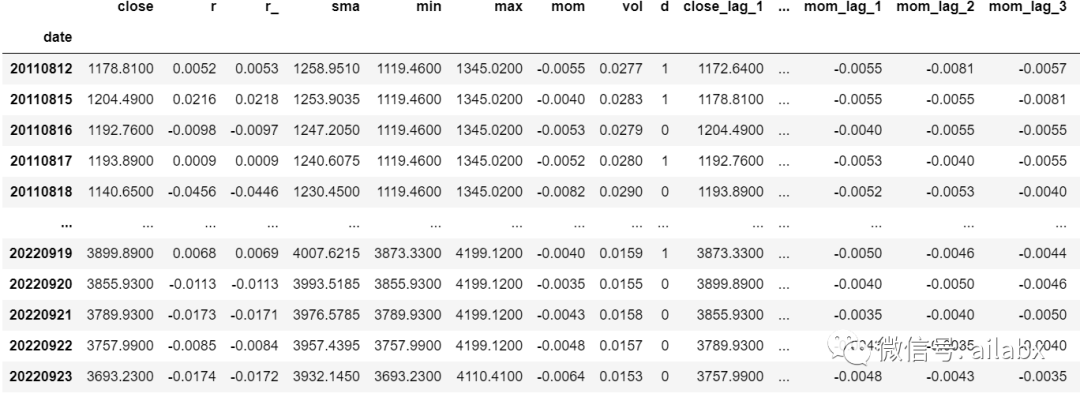

data, cols = add_lags(data, 'close', lags=5, window=20)
data

按日期划分训练集与测试集

split = '2018-01-01'
train = data.loc[:split].copy()
test = data.loc[split:].copy()

def norm(raw):
    mu, std = raw.mean(), raw.std()
    data_ = (raw-mu)/std
    return data_

mu, std = train.mean(), train.std()
train_ = (train-mu)/std
test_ = norm(test)
print(train)
train_

03 算法模型

import random
import tensorflow as tf
from keras.layers import Dense, Dropout
from keras.models import Sequential
from keras.regularizers import l1
from keras.optimizers import Adam
from sklearn.metrics import accuracy_score
def set_seeds(seed=100):
    random.seed(seed)
    np.random.seed(seed)
    tf.random.set_seed(seed)
set_seeds()
optimizer = Adam(learning_rate=0.0001)
def create_model(hl=2, hu=128, dropout=False, rate=0.3,
                regularize=False, reg=l1(0.0005),
                optimizer=optimizer, input_dim=len(cols)):
    if not regularize:
        reg = None
    model = Sequential()
    model.add(Dense(hu, input_dim=input_dim,
                 activity_regularizer=reg,
                 activation='relu'))
    if dropout:
        model.add(Dropout(rate, seed=100))
    for _ in range(hl):
        model.add(Dense(hu, activation='relu',
                     activity_regularizer=reg))
        if dropout:
            model.add(Dropout(rate, seed=100))
    model.add(Dense(1, activation='sigmoid'))
    model.compile(loss='binary_crossentropy',
                  optimizer=optimizer,
                  metrics=['accuracy'])
    return model

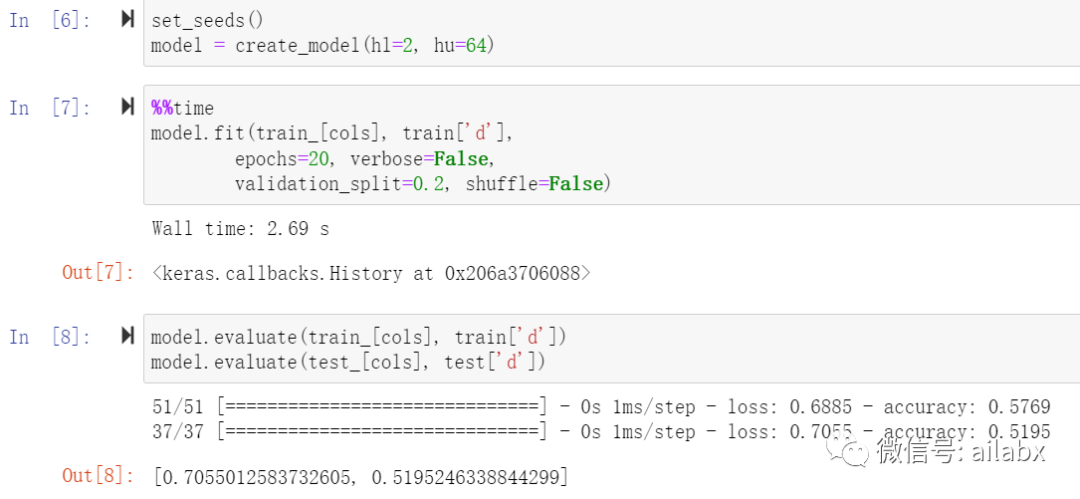

模型训练耗时3秒左右，样本内的准确率57%，样本外51.9%。

train['p'] = np.where(model.predict(train_[cols]) > 0.5, 1, 0)
print(train['p'])

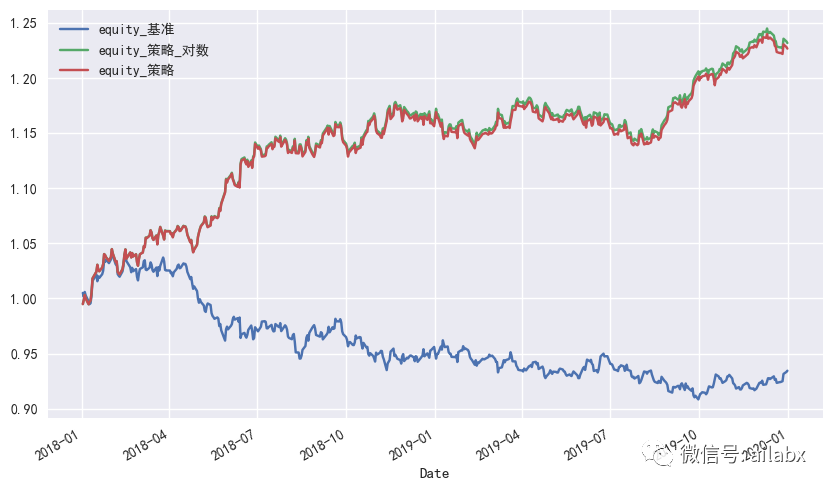

def backtest(data, data_norm):
    data['pos'] = np.where(model.predict(data_norm[cols]) > 0.5, 1, 0)
    data['pos']=np.where(data['pos'] == 1, 1, -1)
    data['收益率_对数'] = data['pos'] * data['r']
    data['收益率'] = data['pos'] * data['r_']
    #data_bkt['收益率'] = data_bkt['pos'] * data_bkt['r_']
    data['equity_基准'] = data['r'].cumsum().apply(np.exp)
    #data_bkt['equity_策略'] = (data_bkt['收益率']+1).cumprod()
    data['equity_策略_对数'] = data['收益率_对数'].cumsum().apply(np.exp)
    data['equity_策略'] = (data['收益率']+1).cumprod()
    data[['equity_基准','equity_策略_对数','equity_策略']].plot(figsize=(10,6))

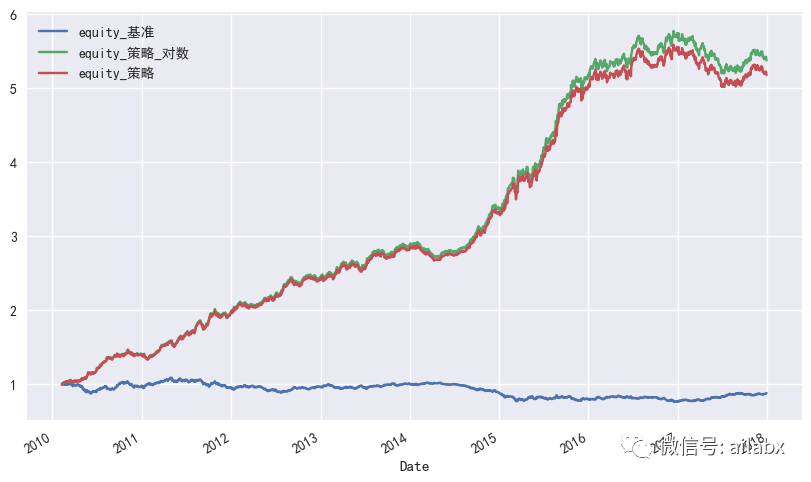

backtest(train,train_)
