端到端因子挖掘框架：DeepAlphaGen：因子生成的强化学习Env Wrapper包装器实现细节

今天继续实现强化学习环境的包装器：

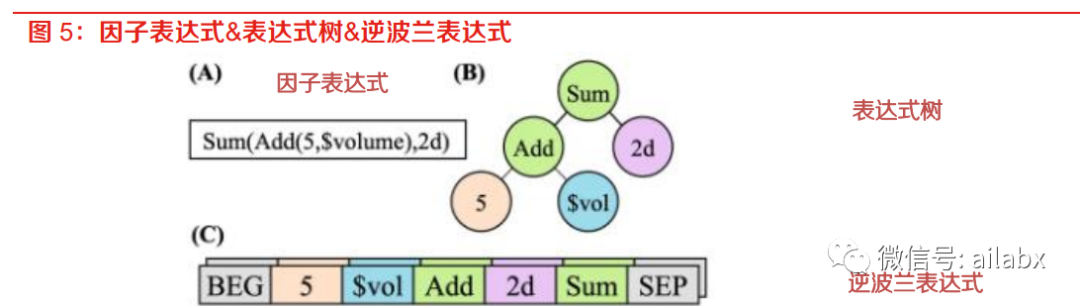

我们有生成符号token序列，这里的序列有多种类型，比如函数std，csrank等，还有特征，通常就是ohlcv，还是日期，比如20d，还有常数。然后就是结束符号。

下面的函数就是把int变成一个token，其实就是查列表。

def action2token(action_raw: int) -> Token:
    action = action_raw + 1
    if action < OFFSET_OP:
        raise ValueError
    elif action < OFFSET_FEATURE:
        return OperatorToken(OPERATORS[action - OFFSET_OP])
    elif action < OFFSET_DELTA_TIME:
        return FeatureToken(FeatureType(action - OFFSET_FEATURE))
    elif action < OFFSET_CONSTANT:
        return DeltaTimeToken(DELTA_TIMES[action - OFFSET_DELTA_TIME])
    elif action < OFFSET_SEP:
        return ConstantToken(CONSTANTS[action - OFFSET_CONSTANT])
    elif action == OFFSET_SEP:
        return SequenceIndicatorToken(SequenceIndicatorType.SEP)
    else:
        assert False

咱们不使用qlib作为数据源，

而是使用咱们自己的框架里的Mongoloader。

Caculator的代码比较简单，就是根据表达式来计算IC值。

论文的代码都是使用torsor来计算的，我考虑直接使用pandas的函数也可以，后期再转化为torch的tensor。

from typing import Optional, List, Tuple

import torch
from torch import Tensor

from alphagen.data.calculator import AlphaCalculator
from alphagen.data.expression import Expression
from alphagen.models.alpha_pool import AlphaPool
from alphagen.rl.env.wrapper import AlphaEnv
from alphagen.utils.correlation import batch_pearsonr, batch_spearmanr
from alphagen.utils.pytorch_utils import normalize_by_day

device = torch.device('cuda:0')
pool_capacity = 10


class QuantlabCalculator(AlphaCalculator):
    def __init__(self, data, target: Optional[Expression]):
        self.data = data

        if target is None:  # Combination-only mode
            self.target_value = None
        else:
            self.target_value = normalize_by_day(target.evaluate(self.data))

    def _calc_alpha(self, expr: Expression) -> Tensor:
        return normalize_by_day(expr.evaluate(self.data))

    def _calc_IC(self, value1: Tensor, value2: Tensor) -> float:
        return batch_pearsonr(value1, value2).mean().item()

    def _calc_rIC(self, value1: Tensor, value2: Tensor) -> float:
        return batch_spearmanr(value1, value2).mean().item()

    def make_ensemble_alpha(self, exprs: List[Expression], weights: List[float]) -> Tensor:
        n = len(exprs)
        factors: List[Tensor] = [self._calc_alpha(exprs[i]) * weights[i] for i in range(n)]
        return sum(factors)  # type: ignore

    def calc_single_IC_ret(self, expr: Expression) -> float:
        value = self._calc_alpha(expr)
        return self._calc_IC(value, self.target_value)

    def calc_single_rIC_ret(self, expr: Expression) -> float:
        value = self._calc_alpha(expr)
        return self._calc_rIC(value, self.target_value)

    def calc_single_all_ret(self, expr: Expression) -> Tuple[float, float]:
        value = self._calc_alpha(expr)
        return self._calc_IC(value, self.target_value), self._calc_rIC(value, self.target_value)

    def calc_mutual_IC(self, expr1: Expression, expr2: Expression) -> float:
        value1, value2 = self._calc_alpha(expr1), self._calc_alpha(expr2)
        return self._calc_IC(value1, value2)

    def calc_pool_IC_ret(self, exprs: List[Expression], weights: List[float]) -> float:
        with torch.no_grad():
            ensemble_value = self.make_ensemble_alpha(exprs, weights)
            return self._calc_IC(ensemble_value, self.target_value)

    def calc_pool_rIC_ret(self, exprs: List[Expression], weights: List[float]) -> float:
        with torch.no_grad():
            ensemble_value = self.make_ensemble_alpha(exprs, weights)
            return self._calc_rIC(ensemble_value, self.target_value)

    def calc_pool_all_ret(self, exprs: List[Expression], weights: List[float]) -> Tuple[float, float]:
        with torch.no_grad():
            ensemble_value = self.make_ensemble_alpha(exprs, weights)
            return self._calc_IC(ensemble_value, self.target_value), self._calc_rIC(ensemble_value, self.target_value)

instruments: str = "csi300",
target = 'Ref(close, -20) / close - 1'

from quantlab.datafeed.dataloader import Mongoloader
data_train = Mongoloader(symbols=[],start_date='20100101',end_date='20191231')
calculator_train = QuantlabCalculator(data_train, target)

pool = AlphaPool(
    capacity=pool_capacity,
    calculator=calculator_train,
    ic_lower_bound=None,
    l1_alpha=5e-3
)
env = AlphaEnv(pool=pool, device=device, print_expr=True)

环境生成一个表达式：

def try_new_expr(self, expr: Expression) -> float:    ic_ret, ic_mut = self._calc_ics(expr, ic_mut_threshold=0.99)    if ic_ret is None or ic_mut is None or np.isnan(ic_ret) or np.isnan(ic_mut).any():        return 0.    self._add_factor(expr, ic_ret, ic_mut)    if self.size > 1:        new_weights = self._optimize(alpha=self.l1_alpha, lr=5e-4, n_iter=500)        worst_idx = np.argmin(np.abs(new_weights))        if worst_idx != self.capacity:            self.weights[:self.size] = new_weights        self._pop()    new_ic_ret = self.evaluate_ensemble()    increment = new_ic_ret - self.best_ic_ret    if increment > 0:        self.best_ic_ret = new_ic_ret    self.eval_cnt += 1    return new_ic_ret
