因子表达式完美重构 | Qlib Alpha158因子库复现（代码+数据）

今天咱们使用上周的lightGBM树模型，Quantlab3.4代码发布 | lightGBM排序轮动 | 29个行业机器学习合成因子轮动策略（代码+数据+模型下载）对A股29个重要行业，做因子筛选。

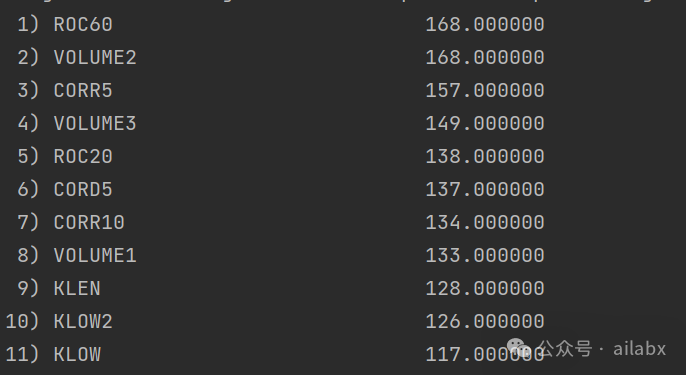

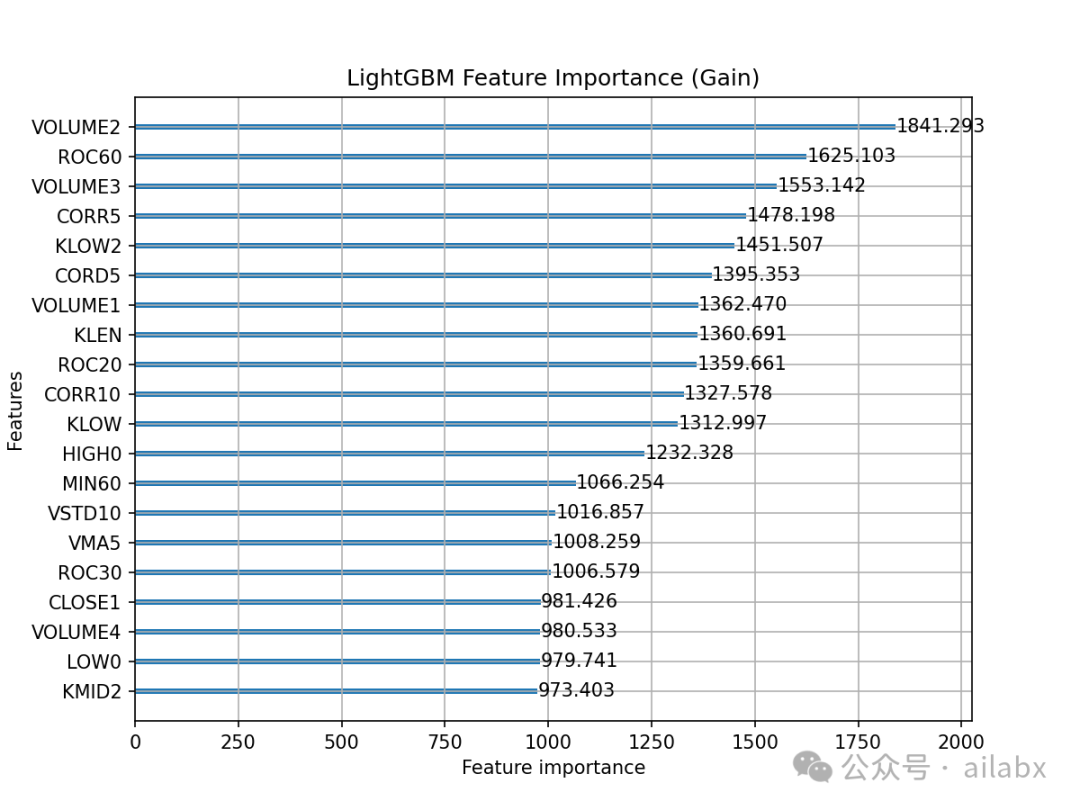

top 20的因子如下：

代码在如下位置：把因子重要性打印出来：

import matplotlib.pyplot as plt
lgb.plot_importance(lgb_ranker, importance_type="gain", figsize=(8, 6), max_num_features=20,title="LightGBM Feature Importance (Gain)")
plt.show()

#idx = list(lgb_ranker.feature_importances_)
importances = lgb_ranker.feature_importances_
indices = np.argsort(importances)[::-1]
for f in range(len(feature_cols)):
    print("%2d) %-*s %f" % (f + 1, 30, feature_cols[indices[f]], importances[indices[f]]))


print(feature_cols)

对于“明天”的收益率的预测。

60日动量竟然很重要，然后是交易额，5天价量相关系数。可以看出来交易额对于短期的收益表达非常重要。

接下来我们给单因子做分析，分的IC/IR值，进行对比，以及因子之间的相关性的分析，进一步论证其有效性。

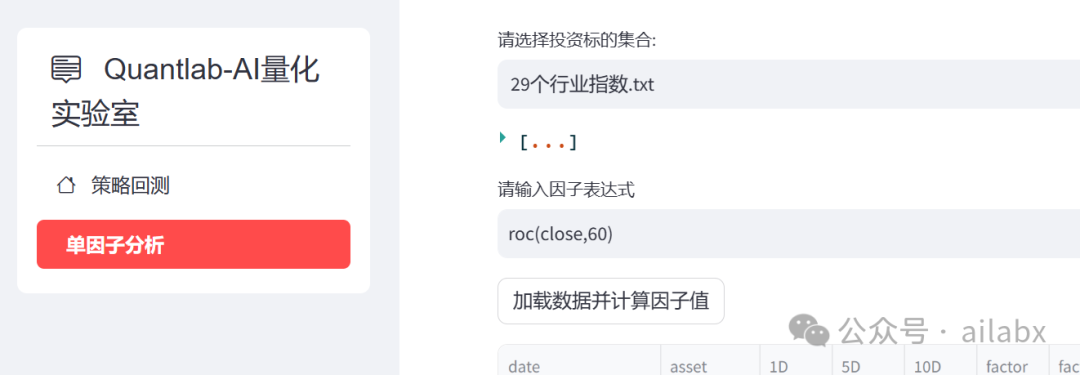

使用咱们的“单因子分析工具”，对因子进行分析：

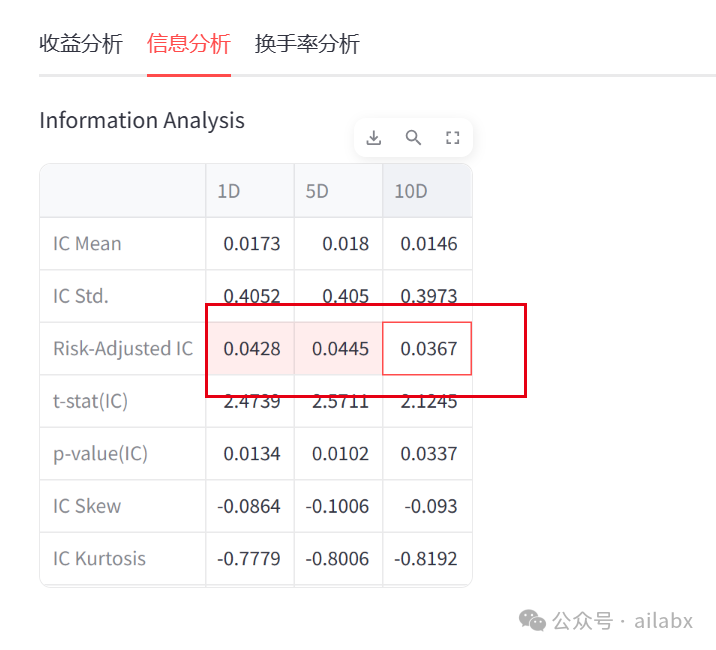

IC达到0.04，还可以：

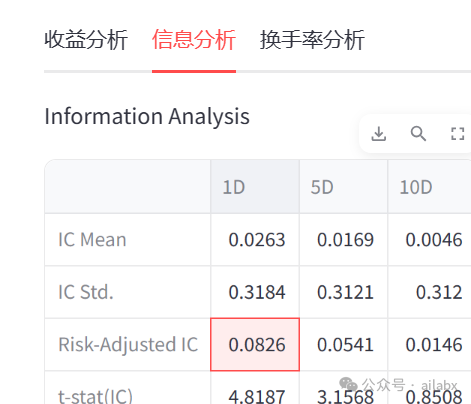

VOLUME2,因子表达式为：shift(volume, 2)/(volume+1e-12)：

就是过去2天的交易额与当前交易额的比值，或者说交易额的“动量”。

第三个因子： CORD5(corr(close/shift(close,1), log(volume/shift(volume, 1)+1), 5))，5个收盘价与成交额背离（相关系数）

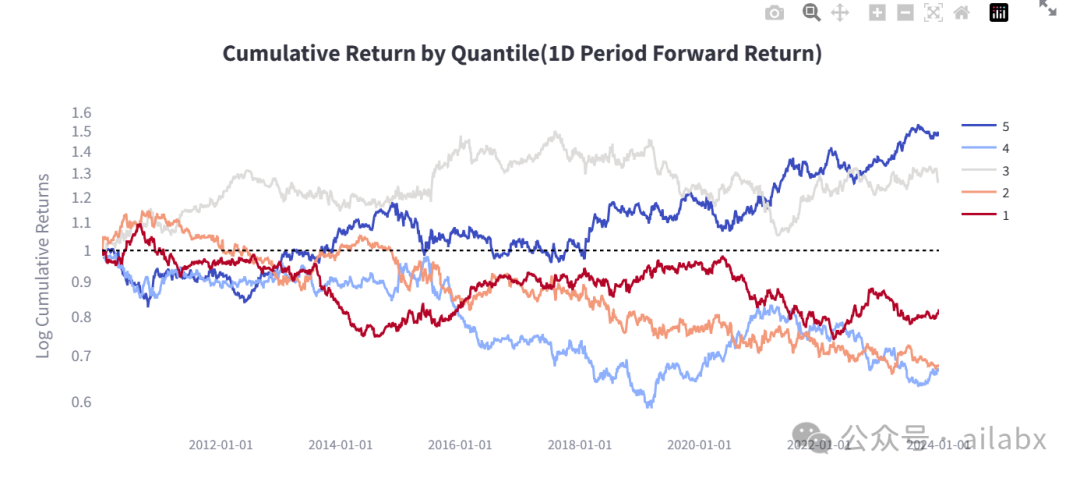

分层收益没有明显的单调性，这个因子不好。

更多的因子分析，大家可以自己从星球取代码，试试看，找找感觉。

找好的因子，肯定不容易。——这就意味着策略，就是钱呀。

因些更需要科学的工具，咱们星球就是用科研的方式，如何科学的，流水线工厂的方式来挖掘因子。

后续的工作就是找到那些高ic的因子，同时在模型里能有不错的表现的因子集。

（持续给大家写代码的，交付最前沿AI量化技术和策略的星球）

本周星球代码计划——因子分析，因子挖掘：

1、（因子表达式优化）Alpha158以及world quant101部分因子实现。

2、基于lightgbm的因子筛选。

3、优秀因子的单因子分析。

4、deepalphagen和gplearn部分代码优化。

或者可以这么说，当前主流私募基金的做法就是因子挖掘。——手工挖，遗传算法，机器学习等。然后合成因子。

因为因子到策略，还有很多人工可以干预的环节。

完全所谓端到端，哪怕就是现在最强的GPT-5也做不到。当下大模型可以真正落地的场景，还是Agent生态，通过多环节的串联+工具来实现预期的目标。

投资也如此。

最多到端对端挖掘因子，然后把因子拿出来做策略。

因子表达式重构

两个包装器，一个按symbol来groupby，另一个按date来groupby

def calc_by_date(func):
    @wraps(func)
    def wrapper(*args, **kwargs):
        other_args = []
        se_args = []
        se_names = []
        for arg in args:
            if type(arg) is not pd.Series:
                other_args.append(arg)
            else:
                se_args.append(arg)
                se_names.append(arg.name)
        if len(se_args) == 1:
            ret = se_args[0].groupby(level=0, group_keys=False).apply(lambda x: func(x, *other_args, **kwargs))
        elif len(se_args) > 1:
            count = len(se_args)
            df = pd.concat(se_args, axis=1)
            df.index = se_args[0].index
            ret = df.groupby(level=0, group_keys=False).apply(
                lambda sub_df: func(*[sub_df[name] for name in se_names], *other_args))
            ret.index = df.index
        return ret

    return wrapper


def calc_by_symbol(func):
    @wraps(func)
    def wrapper(*args, **kwargs):
        other_args = []
        se_args = []
        se_names = []
        for arg in args:
            if type(arg) is not pd.Series:
                other_args.append(arg)
            else:
                se_args.append(arg)
                se_names.append(arg.name)
        if len(se_args) == 1:
            ret = se_args[0].groupby(level=1, group_keys=False).apply(lambda x: func(x, *other_args, **kwargs))
        elif len(se_args) > 1:
            count = len(se_args)
            df = pd.concat(se_args, axis=1)
            df.index = se_args[0].index
            ret = df.groupby(level=1, group_keys=False).apply(
                lambda sub_df: func(*[sub_df[name] for name in se_names], *other_args))
            ret.index = df.index
        return ret

    return wrapper

目前，需要使用截面排序rank，需要截面排序。

这样做的好处，就是所有的计算子函数都不需要变更了，加上这个包装器即可：

@calc_by_symbol
def ta_atr(high, low, close, period=14):
    se = talib.ATR(high, low, close, period)
    se = pd.Series(se)
    se.index = high.index
    return se

@calc_by_date
def rank(se: pd.Series):
    ret = se.rank(pct=True)
    return ret

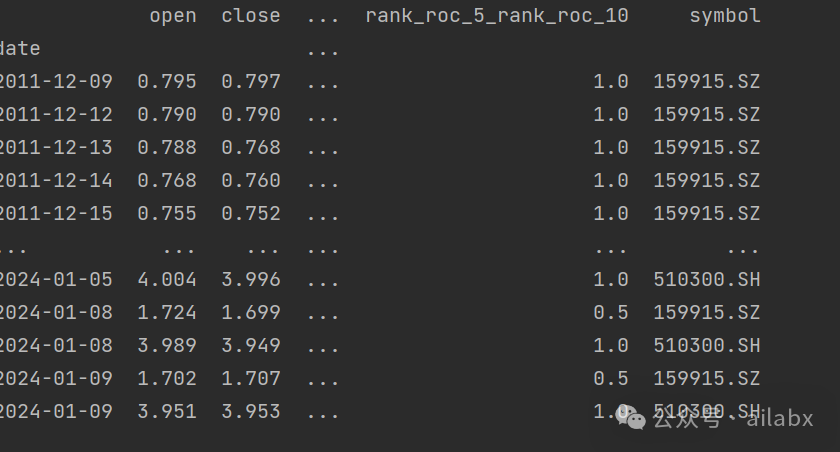

这样csv_dataloader加载数据，因子计算速度也快了很多，最重要的是，我们解决了rank，ts_rank嵌套的问题。

Alpha158因子库

代码完全移植过来了，qlib的158因子，大家感兴趣可以把alpha360也迁移过来。

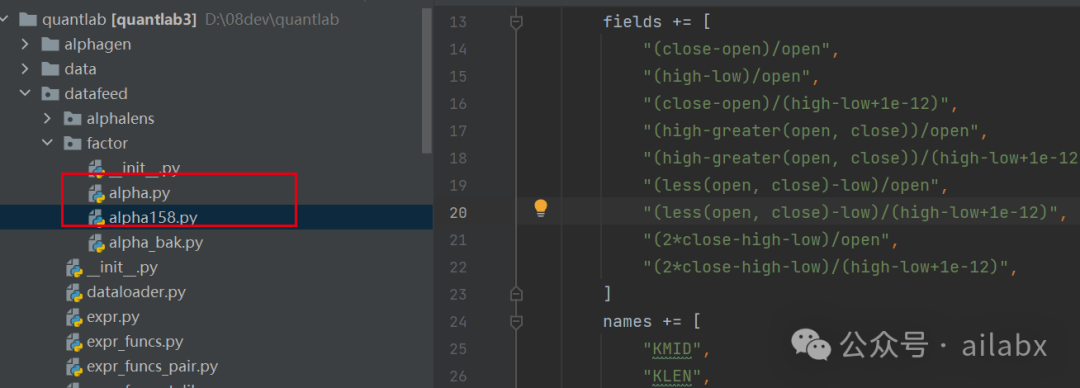

代码在如下位置：

from datafeed import AlphaBaseclass Alpha158(AlphaBase):    def get_fields_names(self):        # ['CORD30', 'STD30', 'CORR5', 'RESI10', 'CORD60', 'STD5', 'LOW0',        # 'WVMA30', 'RESI5', 'ROC5', 'KSFT', 'STD20', 'RSV5', 'STD60', 'KLEN']        fields = []        names = []        # kbar        fields += [            "(close-open)/open",            "(high-low)/open",            "(close-open)/(high-low+1e-12)",            "(high-greater(open, close))/open",            "(high-greater(open, close))/(high-low+1e-12)",            "(less(open, close)-low)/open",            "(less(open, close)-low)/(high-low+1e-12)",            "(2*close-high-low)/open",            "(2*close-high-low)/(high-low+1e-12)",        ]        names += [            "KMID",            "KLEN",            "KMID2",            "KUP",            "KUP2",            "KLOW",            "KLOW2",            "KSFT",            "KSFT2",        ]        # =========== price ==========        feature = ["OPEN", "HIGH", "LOW", "CLOSE"]        windows = range(5)        for field in feature:            field = field.lower()            fields += ["shift(%s, %d)/close" % (field, d) if d != 0 else "%s/close" % field for d in windows]            names += [field.upper() + str(d) for d in windows]        # ================ volume ===========        fields += ["shift(volume, %d)/(volume+1e-12)" % d if d != 0 else "volume/(volume+1e-12)" for d in windows]        names += ["VOLUME" + str(d) for d in windows]        # ================= rolling ====================        windows = [5, 10, 20, 30, 60]        fields += ["shift(close, %d)/close" % d for d in windows]        names += ["ROC%d" % d for d in windows]        fields += ["mean(close, %d)/close" % d for d in windows]        names += ["MA%d" % d for d in windows]        fields += ["std(close, %d)/close" % d for d in windows]        names += ["STD%d" % d for d in windows]        #fields += ["slope(close, %d)/close" % d for d in windows]        #names += ["BETA%d" % d for d in windows]        fields += ["max(high, %d)/close" % d for d in windows]        names += ["MAX%d" % d for d in windows]        fields += ["min(low, %d)/close" % d for d in windows]        names += ["MIN%d" % d for d in windows]        fields += ["quantile(close, %d, 0.8)/close" % d for d in windows]        names += ["QTLU%d" % d for d in windows]        fields += ["quantile(close, %d, 0.2)/close" % d for d in windows]        names += ["QTLD%d" % d for d in windows]        #fields += ["ts_rank(close, %d)" % d for d in windows]        #names += ["RANK%d" % d for d in windows]        fields += ["(close-min(low, %d))/(max(high, %d)-min(low, %d)+1e-12)" % (d, d, d) for d in windows]        names += ["RSV%d" % d for d in windows]        fields += ["idxmax(high, %d)/%d" % (d, d) for d in windows]        names += ["IMAX%d" % d for d in windows]        fields += ["idxmin(low, %d)/%d" % (d, d) for d in windows]        names += ["IMIN%d" % d for d in windows]        fields += ["(idxmax(high, %d)-idxmin(low, %d))/%d" % (d, d, d) for d in windows]        names += ["IMXD%d" % d for d in windows]        fields += ["corr(close, log(volume+1), %d)" % d for d in windows]        names += ["CORR%d" % d for d in windows]        fields += ["corr(close/shift(close,1), log(volume/shift(volume, 1)+1), %d)" % d for d in windows]        names += ["CORD%d" % d for d in windows]        fields += ["mean(close>shift(close, 1), %d)" % d for d in windows]        names += ["CNTP%d" % d for d in windows]        fields += ["mean(close<shift(close, 1), %d)" % d for d in windows]        names += ["CNTN%d" % d for d in windows]        fields += ["mean(close>shift(close, 1), %d)-mean(close<shift(close, 1), %d)" % (d, d) for d in windows]        names += ["CNTD%d" % d for d in windows]        fields += [            "sum(greater(close-shift(close, 1), 0), %d)/(sum(Abs(close-shift(close, 1)), %d)+1e-12)" % (d, d)            for d in windows        ]        names += ["SUMP%d" % d for d in windows]        fields += [            "sum(greater(shift(close, 1)-close, 0), %d)/(sum(Abs(close-shift(close, 1)), %d)+1e-12)" % (d, d)            for d in windows        ]        names += ["SUMN%d" % d for d in windows]        fields += [            "(sum(greater(close-shift(close, 1), 0), %d)-sum(greater(shift(close, 1)-close, 0), %d))"            "/(sum(Abs(close-shift(close, 1)), %d)+1e-12)" % (d, d, d)            for d in windows        ]        names += ["SUMD%d" % d for d in windows]        fields += ["mean(volume, %d)/(volume+1e-12)" % d for d in windows]        names += ["VMA%d" % d for d in windows]        fields += ["std(volume, %d)/(volume+1e-12)" % d for d in windows]        names += ["VSTD%d" % d for d in windows]        fields += [            "std(Abs(close/shift(close, 1)-1)*volume, %d)/(mean(Abs(close/shift(close, 1)-1)*volume, %d)+1e-12)"            % (d, d)            for d in windows        ]        names += ["WVMA%d" % d for d in windows]        fields += [            "sum(greater(volume-shift(volume, 1), 0), %d)/(sum(Abs(volume-shift(volume, 1)), %d)+1e-12)"            % (d, d)            for d in windows        ]        names += ["VSUMP%d" % d for d in windows]        fields += [            "sum(greater(shift(volume, 1)-volume, 0), %d)/(sum(Abs(volume-shift(volume, 1)), %d)+1e-12)"            % (d, d)            for d in windows        ]        names += ["VSUMN%d" % d for d in windows]        fields += [            "(sum(greater(volume-shift(volume, 1), 0), %d)-sum(greater(shift(volume, 1)-volume, 0), %d))"            "/(sum(Abs(volume-shift(volume, 1)), %d)+1e-12)" % (d, d, d)            for d in windows        ]        names += ["VSUMD%d" % d for d in windows]        return fields, names
