年化收益 21%：lightGBM的WFA滚动训练，使用qlib的alpha158因子集

之于当下而言，可能有两件事：一是AI量化可以产出交付实盘的有效策略；二是如何有效切入AIGC。

今天先来看看因子分析。

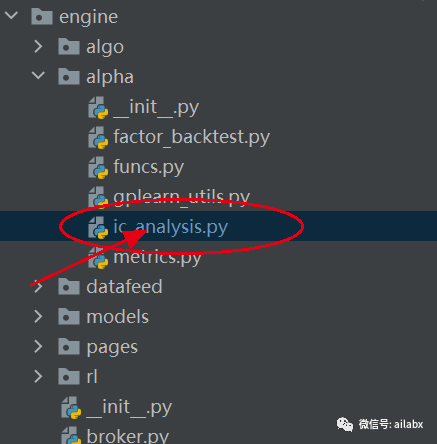

代码在这个位置：alphalens相对复杂，其实我们一般也仅看ic和ric两个数值，我们就自己实现了。

from typing import Tupleimport pandas as pddef calc_ic(pred: pd.Series, label: pd.Series, date_col="date", dropna=False) -> Tuple[pd.Series, pd.Series]:    df = pd.DataFrame({"pred": pred, "label": label})    ic = df.groupby(date_col).apply(lambda df: df["pred"].corr(df["label"]))    ric = df.groupby(date_col).apply(lambda df: df["pred"].corr(df["label"], method="spearman"))    if dropna:        return ic.dropna(), ric.dropna()    else:        return ic, ricif __name__ == '__main__':    from engine.datafeed.dataloader import CSVDataloader    from engine.config import etfs_indexes    from engine.config import DATA_INDEX    loader = CSVDataloader(DATA_INDEX.resolve(), etfs_indexes.values(), start_date="20120101")    df = loader.load(fields=['ta("MACD",close)','shift(close,-5)/close-1'], names=['factor','label'])    print(df)    ic, ir = calc_ic(pred=df['label'], label=df['factor'],dropna=True)    print(ic.mean(), ir.mean())    ic.plot()    import matplotlib.pyplot as plt    plt.show()

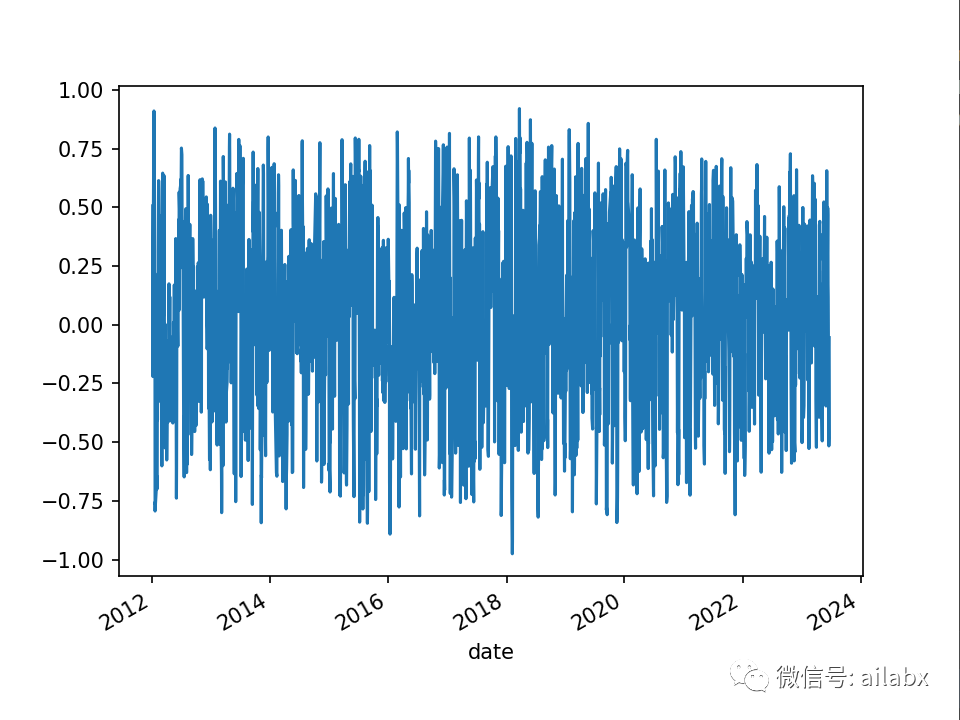

5天的RSI值为未来5天收益的因子分析：ic/ric均值为0.04，是有相关性的。

目前看，即便0.04，0.05的因子，对于未来5天收益率的分类准确性，样本外仍然是10%左右。如果是仅预测未来是上涨还是下跌的2分类，样本外可以达到60%多。

因此，我们仍然把希望寄托在排序上。

投资无外乎选股、择时。而择时本身也是一种广义的选股。

而选择本身就是一种排序，择其优者而选之。

大家最熟悉的分类算法，在AI量化也算一种排序。就是通过分类算法，预测未来股票上涨概率。然后按概率值排序——这里对应的就是pointwise。这里有一个明显的问题在于，我们对每一支股票的截面数据进行预测，但没有关心股票与股票之间的相对关系，而我们知道，预测收益概率是非常难的事情，而判断它们之间的相对优劣则更为容易。

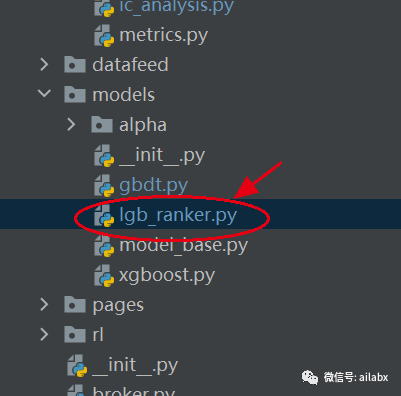

重构GBMRanker

import numpy as np
from sklearn.model_selection import train_test_split
import lightgbm as lgb

from engine.datafeed.dataset import DataSet
import joblib, os

from engine.models.model_base import ModelBase


class LGBRanker(ModelBase):
    def __init__(self, name, load_model, feature_cols=None):
        super(LGBRanker, self).__init__(name, load_model)
        self.feature_cols = feature_cols
        self.label_col = 'label'

    def _prepare_groups(self, df):
        df['day'] = df.index
        group = df.groupby('day')['day'].count()
        print(group.values)
        return group.values

    def predict(self, data):
        data = data.copy(deep=True)
        if self.feature_cols:
            data = data[self.feature_cols]

        pred = self.ranker.predict(data)
        return pred

    def train(self, df, split_date):
        if split_date:
            df_train = df[df.index < split_date]
            df_val = df[df.index >= split_date]

        query_train = self._prepare_groups(df_train.copy(deep=True))
        query_val = self._prepare_groups(df_val.copy(deep=True))

        ranker = lgb.LGBMRanker()

        ranker.fit(df_train[self.feature_cols], df_train[self.label_col], group=query_train,
                   eval_set=[(df_val[self.feature_cols], df_val[self.label_col])], eval_group=[query_val],

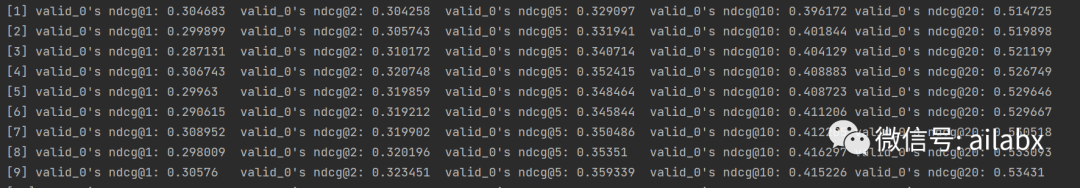

                   eval_at=[1, 2, 5, 10, 20], early_stopping_rounds=50)

        self.ranker = ranker

        print(ranker.n_features_)
        print(ranker.feature_importances_)
        print(ranker.feature_name_)

        score, names = zip(*sorted(zip(ranker.feature_importances_, ranker.feature_name_), reverse=True))
        print(score)
        print(names)


if __name__ == '__main__':
    from engine.config import etfs_indexes
    from engine.datafeed.dataloader import CSVDataloader
    from engine.config import DATA_INDEX
    from engine.datafeed.alpha import AlphaLit

    loader = CSVDataloader(path=DATA_INDEX.resolve(), symbols=etfs_indexes.values())
    ds = DataSet("行业指数数据集", loader=loader, handler=AlphaLit(), cache=False)
    print(ds.data)

    df = ds.data
    df.dropna(inplace=True)
    print(df)

    LGBRanker('', feature_cols=ds.get_feature_names(), load_model=False).train(df, '2022-01-01')
    # lightgbm.plot_importance(ranker, figsize=(12, 8))

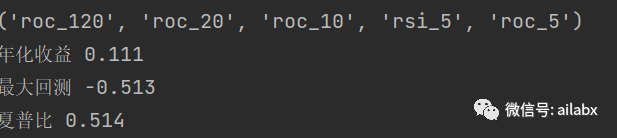

实证告诉我们一个结论：

因子不是越多越好，哪怕GBDT可以筛选因子，但因子之间是会冲突，不恰当的加入多余的因子，会降低训练的性能！这里就需要验证因子之间的相关性，正效性。——所以，不要试图一股恼把一堆因子加到模型里，让模型自己去筛选。——如果真这样，那就太简单了。

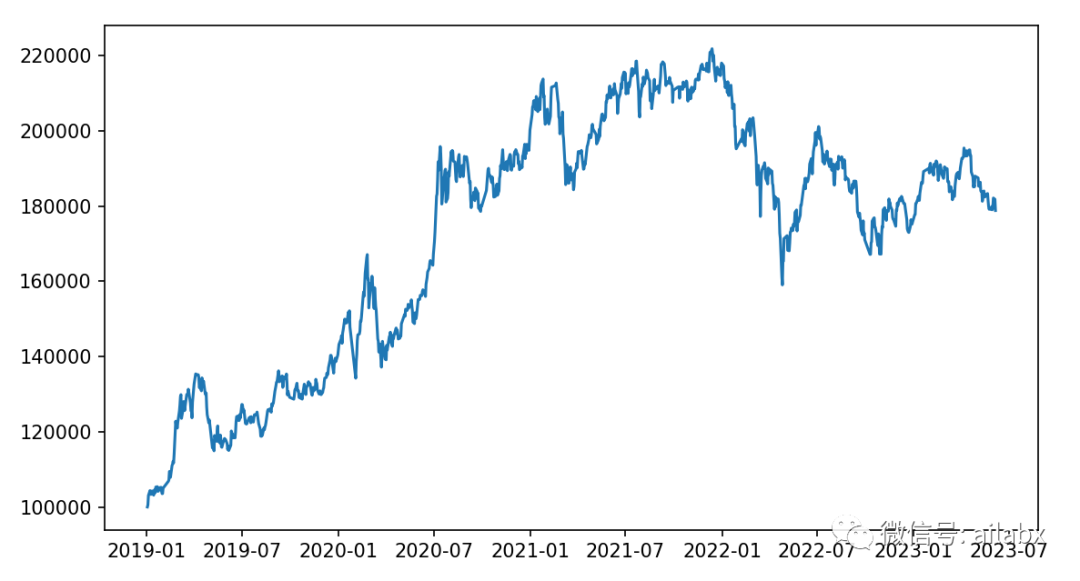

模型回测——滚动回测

from engine.config import etfs_indexes
from engine.datafeed.dataset import DataSet
from engine.env import Env

from engine.config import etfs_indexes
from engine.datafeed.dataloader import CSVDataloader
from engine.config import DATA_INDEX
from engine.datafeed.alpha import AlphaLit

loader = CSVDataloader(path=DATA_INDEX.resolve(), symbols=etfs_indexes.values())
ds = DataSet("行业指数数据集", loader=loader, handler=AlphaLit(), cache=False)
print(ds.data)

from engine.algo.algos import *
from engine.algo.algo_weights import *
from engine.algo.algo_model import ModelWFA
from engine.models.lgb_ranker import LGBRanker
from engine.env import Env

model = LGBRanker(name='滚动回测——排序',load_model=False, feature_cols=ds.get_feature_names())
# model.train(ds.data, '2022-01-01')

env = Env(ds.data)
env.set_algos([
    RunWeekly(),
    ModelWFA(model=model),
    SelectTopK(K=2, order_by='pred_score', b_ascending=False),
    WeightEqually()
])

env.backtest_loop()
env.show_results()

之于这第二件事，有效切入AIGC。当下很多自媒体，甚至很多技术人员，都是看热闹阶段，或者在周边用chatGPT的api或者作图的api，所谓的prompt，生成一些文章或者一些图片。真正有效参与到这个生产力提升的环节，普通人或者创业公司，要从头训练大模型即不现实也不需要。把大模型看成传统“预训练”模型就好，传统我们也不会去从零开始训练bert或者GPT，而是在预训练的基础上进行微调，对于通用大模型，逻辑类似。

而且我们切入的方向一定是垂直方向，专有知识解决领域问题。我想到最好落地的仍然是金融，与AI量化类似，FinGPT应该也会很有意思。之有做FinRL的团队开源了FinGPT，至少这个构想是特别好的。后续会持续关注下。

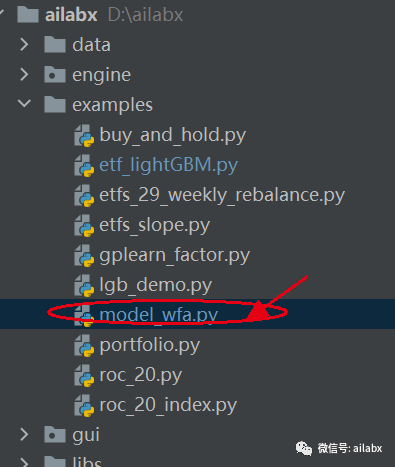

今天要抽空实现“前向滚动”训练回测。

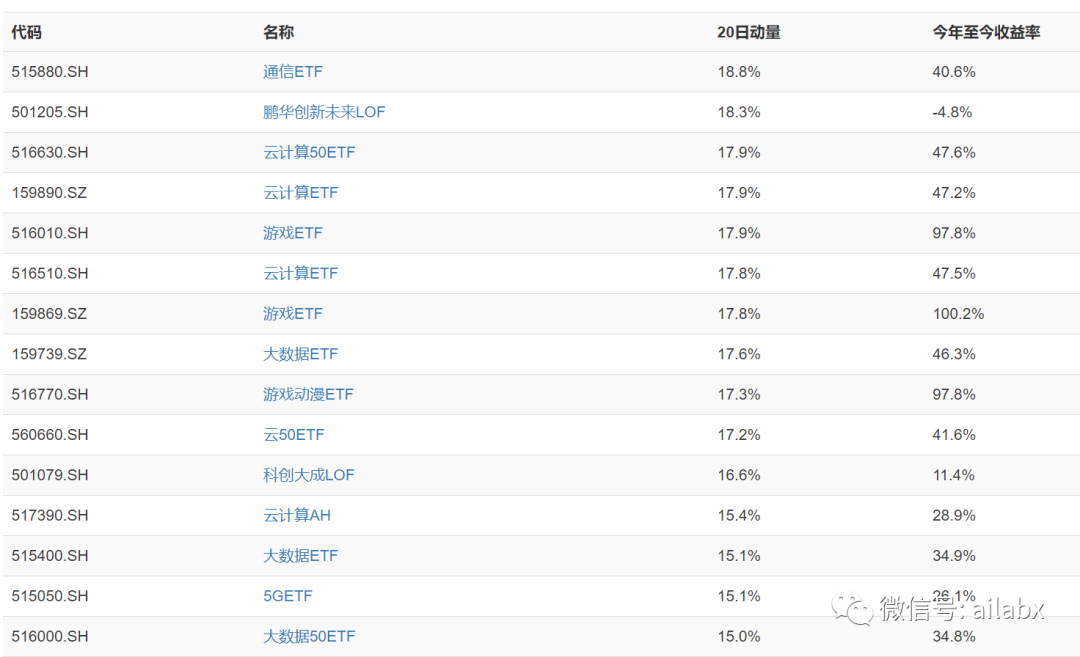

从20日动量来看，我们选择29个行业作为候选集合是对的。

因为市场是按行业分化的，尤其是市场情绪震荡有分歧之时：

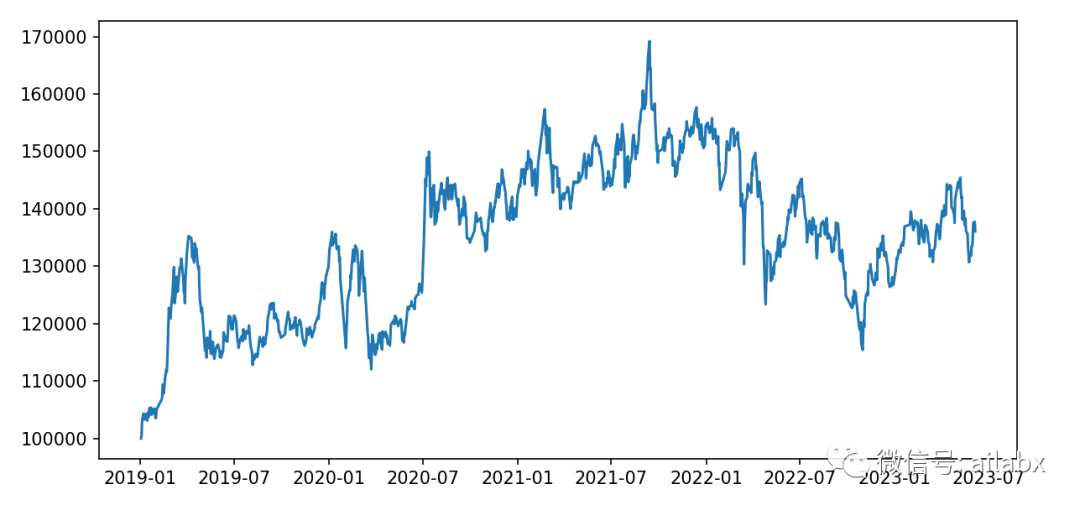

29个行业等权回测：

年化收益 0.075，最大回测 -0.318，夏普比 0.441。

等权加周再平衡：

年化收益 0.146，最大回测 -0.283，夏普比 0.748。再平衡适合相关性低的组合，正当的行业比较明显。

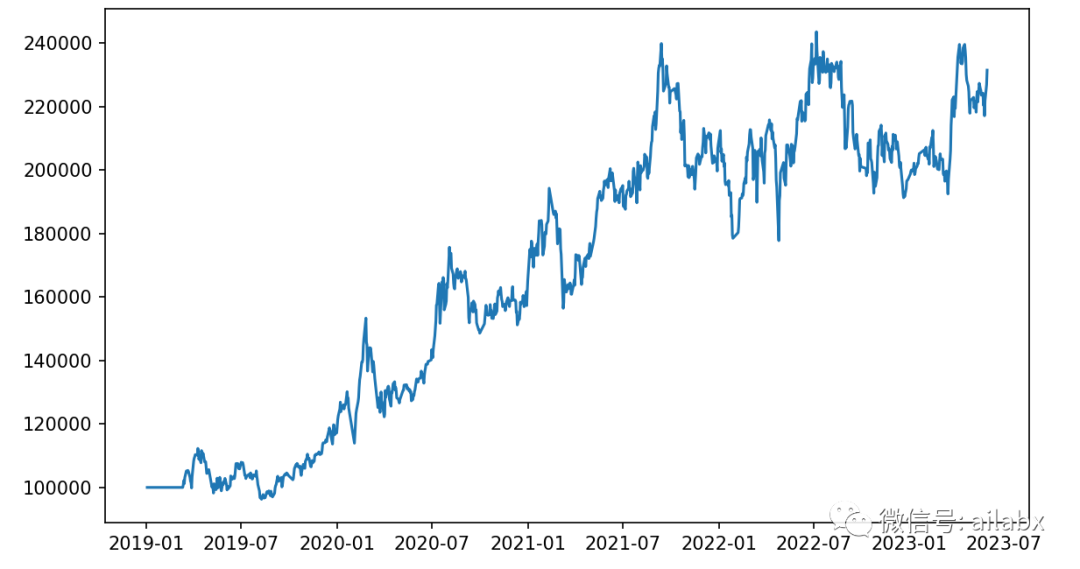

使用lightGBM的WFA滚动训练：

年化收益 0.219，最大回测 -0.259，夏普比 0.861。

etfs = [
        '159870.SZ',
        '512400.SH',
        '515220.SH',
        '515210.SH',
        '516950.SH',
        '562800.SH',

        '515170.SH',
        '512690.SH',
        '159996.SZ',
        '159865.SZ',
        '159766.SZ',

        '515950.SH',
        '159992.SZ',
        '159839.SZ',
        '512170.SH',
        '159883.SZ',

        '512980.SH',
        '159869.SZ',
        '515050.SH',
        '515000.SH',
        '515880.SH',
        '512480.SH',
        '515230.SH',

        '512670.SH',
        '515790.SH',
        '159757.SZ',
        '516110.SH',

        '512800.SH',
        '512200.SH',
    ]

import numpy as np
import pandas as pd
from tqdm import tqdm
from engine.env import Env


from engine.datafeed.dataset import DataSet, AlphaLit, Alpha
ds = DataSet(etfs, start_date='20190101', handler=Alpha(), cache=True)

# ds = DataSet(['000300.SH', '399006.SZ'], start_date='20120101', handler=Alpha())
env = Env(ds.data)

from engine.context import ExecContext
from engine.algo.algos import *
from engine.algo.algo_model import ModelWFA
from engine.models.gbdt_l2r import LGBModel

model = LGBModel(load_model=False, feature_cols=ds.get_feature_names())

env.set_algos([
    RunWeekly(),
    ModelWFA(model=model),
    SelectTopK(K=2, order_by='pred_score', b_ascending=False),
    WeightEqually()
])

env.backtest_loop()
env.show_results()

下面是因子集的定义代码：

class Alpha(AlphaBase):
    def __init__(self):
        pass

    @staticmethod
    def parse_config_to_fields():
        # ['CORD30', 'STD30', 'CORR5', 'RESI10', 'CORD60', 'STD5', 'LOW0',
        # 'WVMA30', 'RESI5', 'ROC5', 'KSFT', 'STD20', 'RSV5', 'STD60', 'KLEN']
        fields = []
        names = []

        # kbar
        fields += [
            "(close-open)/open",
            "(high-low)/open",
            "(close-open)/(high-low+1e-12)",
            "(high-greater(open, close))/open",
            "(high-greater(open, close))/(high-low+1e-12)",
            "(less(open, close)-low)/open",
            "(less(open, close)-low)/(high-low+1e-12)",
            "(2*close-high-low)/open",
            "(2*close-high-low)/(high-low+1e-12)",
        ]
        names += [
            "KMID",
            "KLEN",
            "KMID2",
            "KUP",
            "KUP2",
            "KLOW",
            "KLOW2",
            "KSFT",
            "KSFT2",
        ]

        # =========== price ==========
        feature = ["OPEN", "HIGH", "LOW", "CLOSE"]
        windows = range(5)
        for field in feature:
            field = field.lower()
            fields += ["shift(%s, %d)/close" % (field, d) if d != 0 else "%s/close" % field for d in windows]
            names += [field.upper() + str(d) for d in windows]

        # ================ volume ===========
        fields += ["shift(volume, %d)/(volume+1e-12)" % d if d != 0 else "volume/(volume+1e-12)" for d in windows]
        names += ["VOLUME" + str(d) for d in windows]

        # ================= rolling ====================
        windows = [5, 10, 20, 30, 60]
        fields += ["shift(close, %d)/close" % d for d in windows]
        names += ["ROC%d" % d for d in windows]

        fields += ["mean(close, %d)/close" % d for d in windows]
        names += ["MA%d" % d for d in windows]

        fields += ["std(close, %d)/close" % d for d in windows]
        names += ["STD%d" % d for d in windows]

        fields += ["slope(close, %d)/close" % d for d in windows]
        names += ["BETA%d" % d for d in windows]

        fields += ["max(high, %d)/close" % d for d in windows]
        names += ["MAX%d" % d for d in windows]

        fields += ["min(low, %d)/close" % d for d in windows]
        names += ["MIN%d" % d for d in windows]

        fields += ["corr(close/shift(close,1), log(volume/shift(volume, 1)+1), %d)" % d for d in windows]
        names += ["CORD%d" % d for d in windows]

        fields += ['close/shift(close,20)-1']
        names += ['roc_20']
        return fields, names
