黄金分割曲线

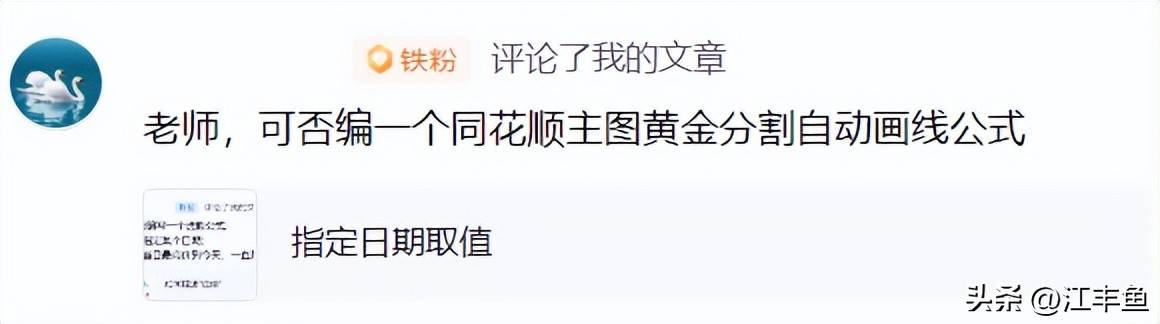

本文应用手动取数的方法绘制黄金分割线，请看留言截图：

网友的留言

网友的思路需求是：建立一个同花顺黄金分割主图标注算法。

（一）、思路步骤：

1.通过变量参数E点、B点，取得对应时间位置的数值；

2.进行黄金分割线的计算；

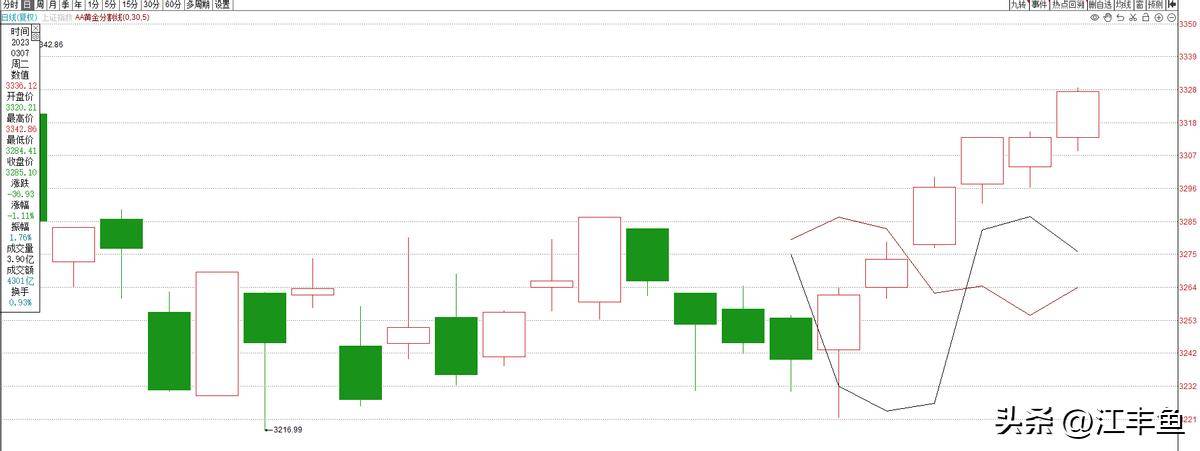

3.绘制黄金分割曲线。

（二）、算法的建立过程：

1.手动取得对应高点值与低点值

BH:IF(CURRBARSCOUNT<=B点+1,CONST(REF(H,B点)),DRAWNULL);

CC:IF(CURRBARSCOUNT<=B点+1,CONST(REF(L,E点)),DRAWNULL);

2.计算并输出相应的黄金分割曲线值

BH0809:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<0,BH*0.809,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0809,BH0809),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0809*1.005,‘80.9%’),colorred;

BH0618:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-1,BH*0.618,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0618,BH0618),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0618*1.005,‘61.8%’),colorred;

BH050:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-2,BH*0.5,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH050,BH050),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH050*1.005,‘50%’),colorred;

BH0382:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-3,BH*0.382,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0382,BH0382),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0382*1.005,‘38.2%’),colorred;

BH0236:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-4,BH*0.236,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0236,BH0236),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0236*1.005,‘23.6%’),colorred;

BH0191:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-4,BH*0.191,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0191,BH0191),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0191*1.005,‘19.1%’),colorred;

CC200:IF(CURRBARSCOUNT<=B点+1 AND 黄金线>5,CC*2,DRAWNULL),colorgreen,DOTLINE;

DRAWNUMBER(ISLASTBAR,CC200,CC200),colorgreen;

DRAWTEXT(CURRBARSCOUNT=B点,CC200*1.005,‘200%’),colorgreen;

CC1809:IF(CURRBARSCOUNT<=B点+1 AND 黄金线>4,CC*1.809,DRAWNULL),colorgreen,DOTLINE;

DRAWNUMBER(ISLASTBAR,CC1809,CC1809),colorgreen;

DRAWTEXT(CURRBARSCOUNT=B点,CC1809*1.005,‘180.9%’),colorgreen;

CC1618:IF(CURRBARSCOUNT<=B点+1 AND 黄金线>3,CC*1.618,DRAWNULL),colorgreen,DOTLINE;

DRAWNUMBER(ISLASTBAR,CC1618,CC1618),colorgreen;

DRAWTEXT(CURRBARSCOUNT=B点,CC1618*1.005,‘161.8%’),colorgreen;

CC150:IF(CURRBARSCOUNT<=B点+1 AND 黄金线>2,CC*1.5,DRAWNULL),colorgreen,DOTLINE;

DRAWNUMBER(ISLASTBAR,CC150,CC150),colorgreen;

DRAWTEXT(CURRBARSCOUNT=B点,CC150*1.005,‘150%’),colorgreen;

CC1382:IF(CURRBARSCOUNT<=B点+1 AND 黄金线>1,CC*1.382,DRAWNULL),colorgreen,DOTLINE;

DRAWNUMBER(ISLASTBAR,CC1382,CC1382),colorgreen;

DRAWTEXT(CURRBARSCOUNT=B点,CC1382*1.005,‘138.2%’),colorgreen;

CC1236:IF(CURRBARSCOUNT<=B点+1 AND 黄金线>0,CC*1.236,DRAWNULL),colorgreen,DOTLINE;

DRAWNUMBER(ISLASTBAR,CC1236,CC1236),colorgreen;

DRAWTEXT(CURRBARSCOUNT=B点,CC1236*1.005,‘123.6%’),colorgreen;

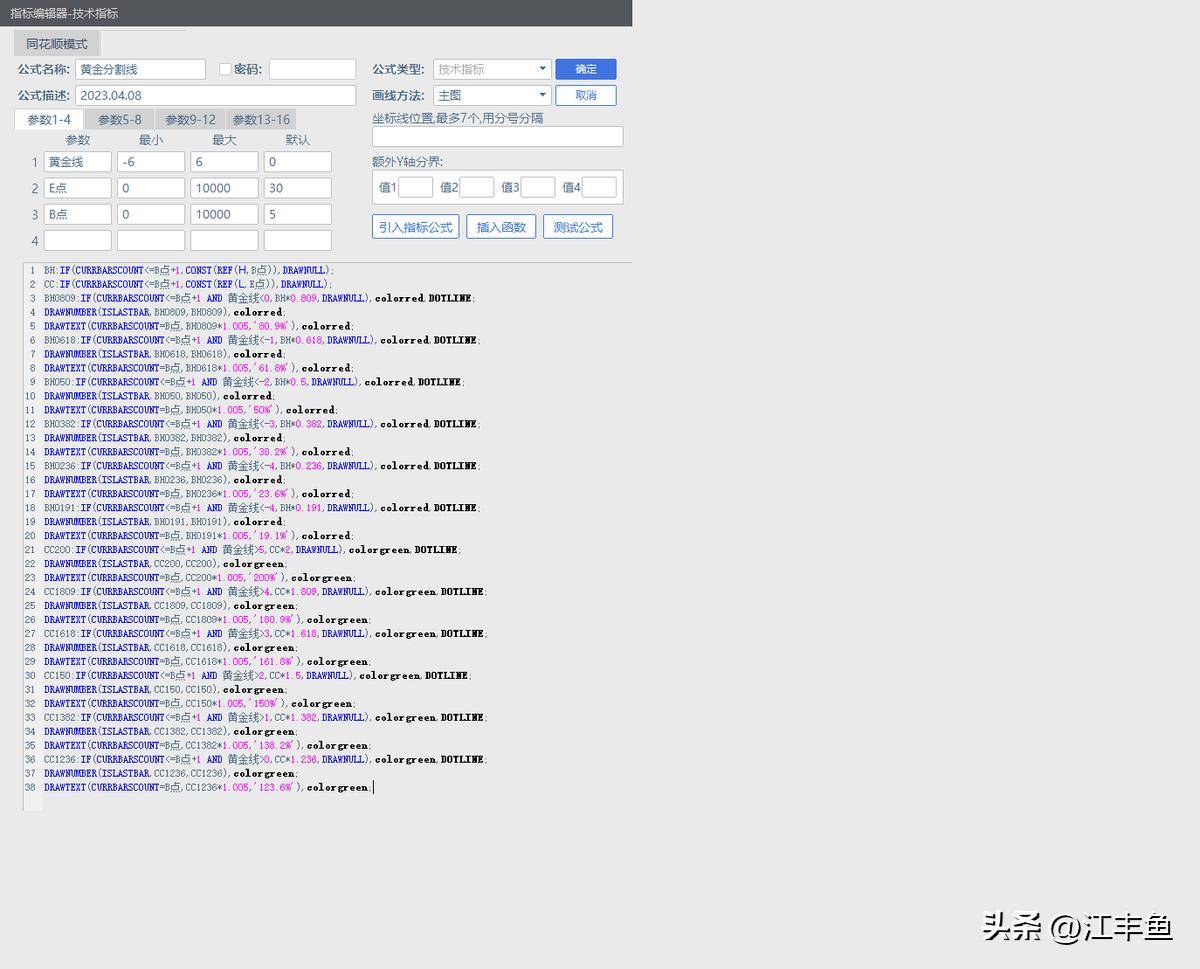

（三）、完整代码：

代码流程

BH:IF(CURRBARSCOUNT<=B点+1,CONST(REF(H,B点)),DRAWNULL);

CC:IF(CURRBARSCOUNT<=B点+1,CONST(REF(L,E点)),DRAWNULL);

BH0809:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<0,BH*0.809,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0809,BH0809),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0809*1.005,’80.9%’),colorred;

BH0618:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-1,BH*0.618,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0618,BH0618),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0618*1.005,’61.8%’),colorred;

BH050:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-2,BH*0.5,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH050,BH050),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH050*1.005,’50%’),colorred;

BH0382:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-3,BH*0.382,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0382,BH0382),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0382*1.005,’38.2%’),colorred;

BH0236:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-4,BH*0.236,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0236,BH0236),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0236*1.005,’23.6%’),colorred;

BH0191:IF(CURRBARSCOUNT<=B点+1 AND 黄金线<-4,BH*0.191,DRAWNULL),colorred,DOTLINE;

DRAWNUMBER(ISLASTBAR,BH0191,BH0191),colorred;

DRAWTEXT(CURRBARSCOUNT=B点,BH0191*1.005,’19.1%’),colorred;

CC200:IF(CURRBARSCOUNT<=B点+1 AND 黄金线>5,CC*2,DRAWNULL),colorgreen,DOTLINE;

DRAWNUMBER(ISLASTBAR,CC200,CC200),colorgreen;
